LD-Q Series

Sheet And Tube Multi Laser Cutting Machine

One Machine For Two Purposes

The LD plate and tube integrated laser cutting machine can cut both metal plates and metal pipes

High strength steel beam

The crossbeam adopts a welded structure, which is rough-machined after annealing to eliminate internal stress,
and fine-machined after secondary vibration aging treatment.

Doubled Efficiency

Diagonal adjustment range 20-280mm. The maximum chuck speed can reach 120rpm/min, and the maximum chuck moving speed is 70m/min.

Cutting Support

Continuous feeding achieves maximum
feeding speed and improves cutting efficiency.

Technical Parameter

Machine Model

LD-3015Q

LD-4015Q

Maximum linkage speed

110m/min

Maximum acceleration

1.0G

Working area

3000*1500

4000*2000

X/Y axis positioning accuracy

±0.02mm/m

Laser power

1000W-20000W

X/Y axis repositioning accuracy

±0.03mm/m

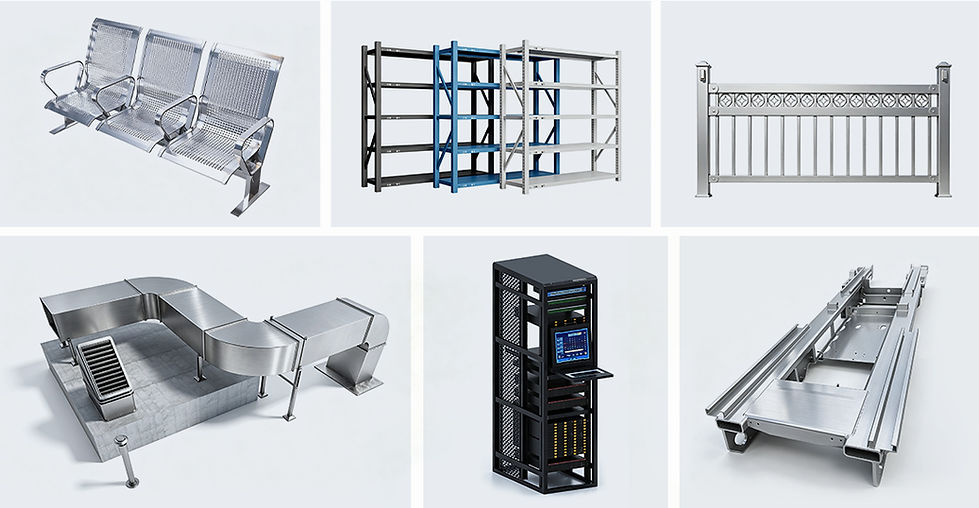

Sample Display
